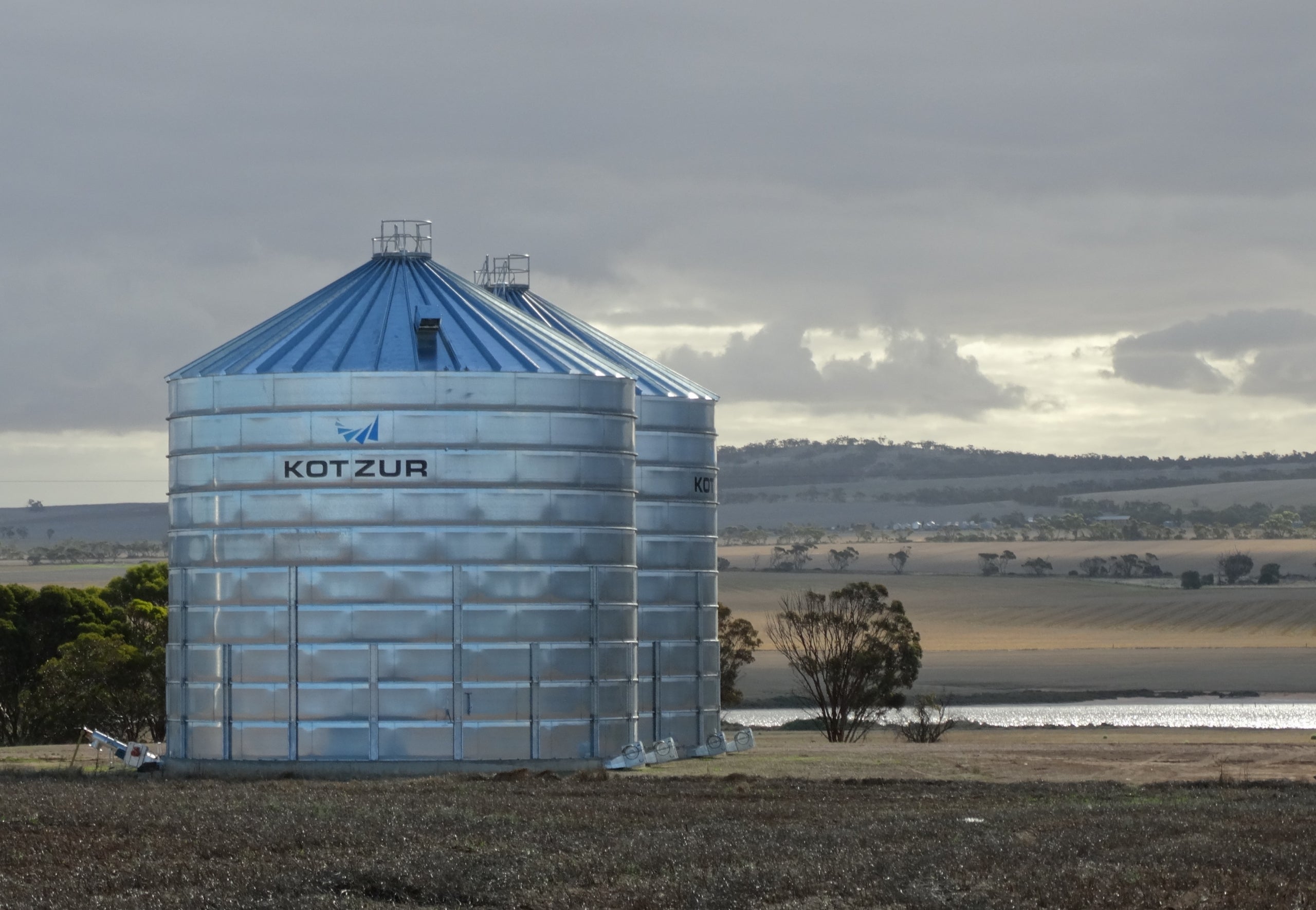

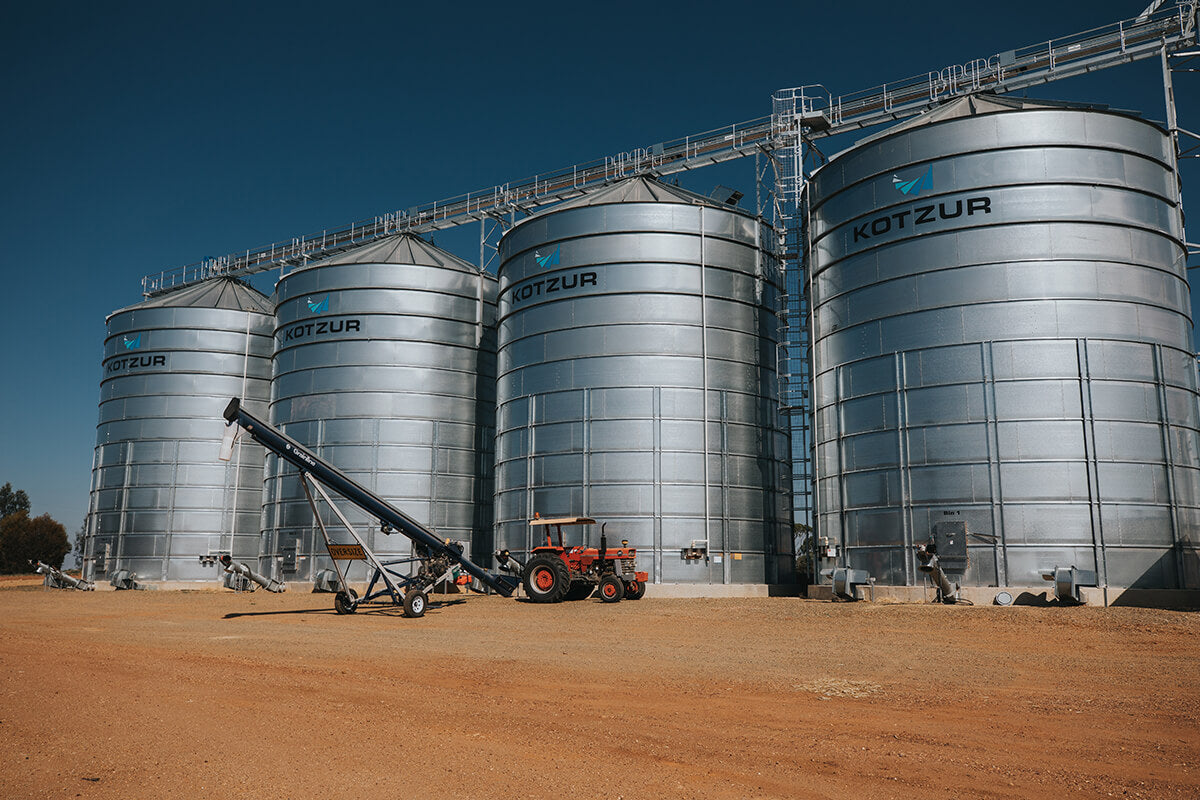

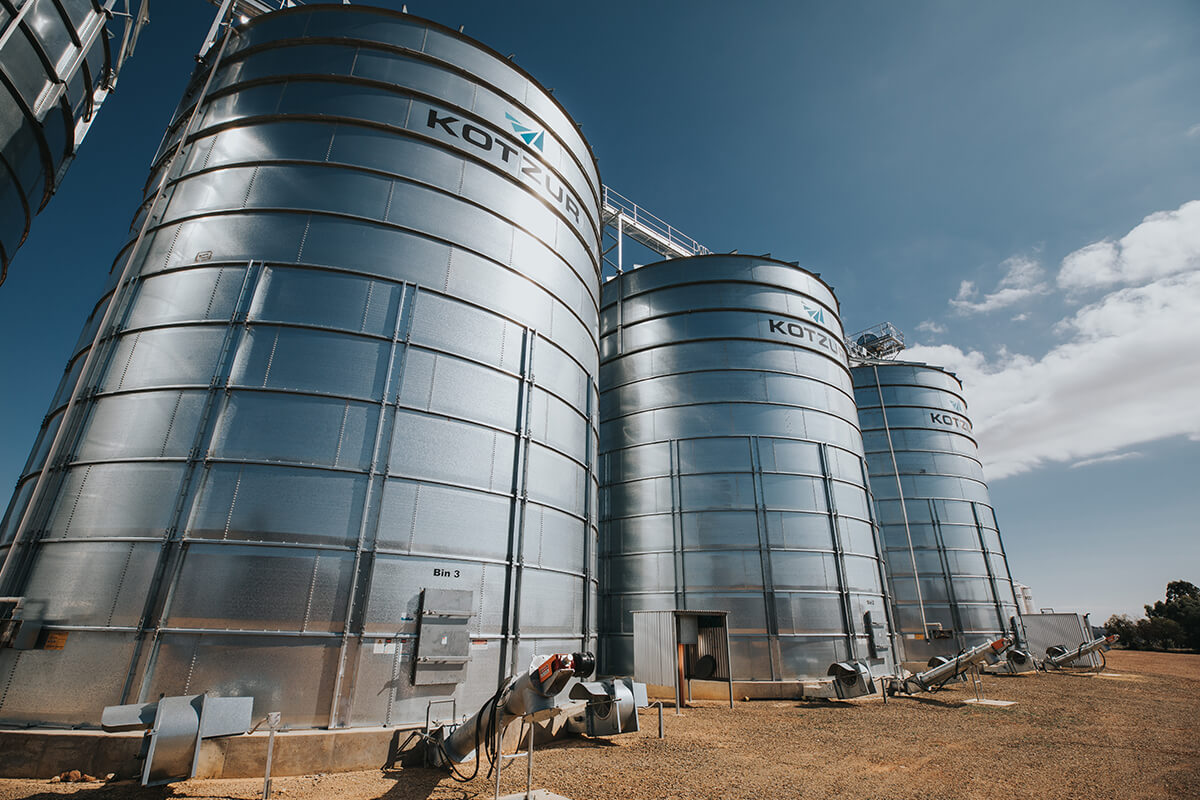

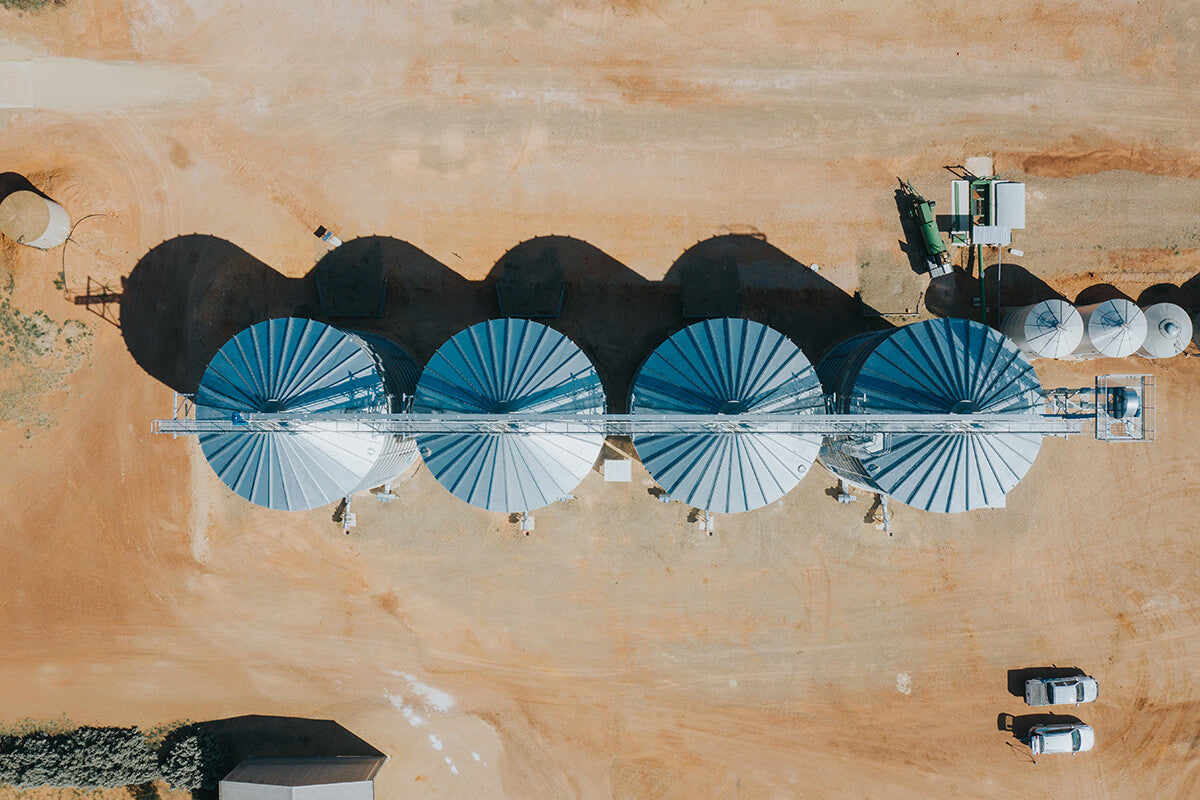

ON-GROUND SILOS

Specifications

GP 12 SeriesCapacity M3Capacity Wheat T(1)Max Load T(2)Height to Centre M(3)Height to Eave M(3)Nom. Diameter MAuger Length(4) M (ft)
GP 12-5 4243523908.669.215.5 (51)
GP 12-6 4964124569.77.19.217.4 (57)
GP 12-7 56847152310.88.29.219.3 (63)
GP 12-8 64053158911.99.39.221.2 (70)
GP 12-9 7125916551310.49.223.2 (76)
GP 12-10 78465172114.111.59.225.1 (82)
GP 12-11 85671078815.212.69.227.0 (89)
GP 12-11 92877085416.313.79.228.9 (95)
GP 15 SeriesCapacity M3Capacity Wheat T(1)Max Load T(2)Height to Centre M(3)Height to Eave M(3)Nom. Diameter MAuger Length(4) M (ft)
GP 15-6 797661733107.111.418.6 (61)
GP 15-7 91075583711.18.211.420.5 (67)
GP 15-8 102284894012.29.311.422.5 (74)
GP 15-9 1135942104413.310.411.424.4 (80)
GP 15-10 12471035114714.411.511.426.3 (86)
GP 15-11 13601129125115.512.611.428.2 (93)
GP 15-12 14721222135416.613.711.430.2 (99)
GP 15-13 15831314145617.714.811.431.4 (103)
GP 15-14 16961408156018.815.911.4N/A
GP 15-15 18091502166419.91711.4N/A
GP 15-16 1922159517682118.111.4N/A
GP 15-17 20351689187222.119.211.4N/A
GP 15-18 21481783197623.220.311.4N/A

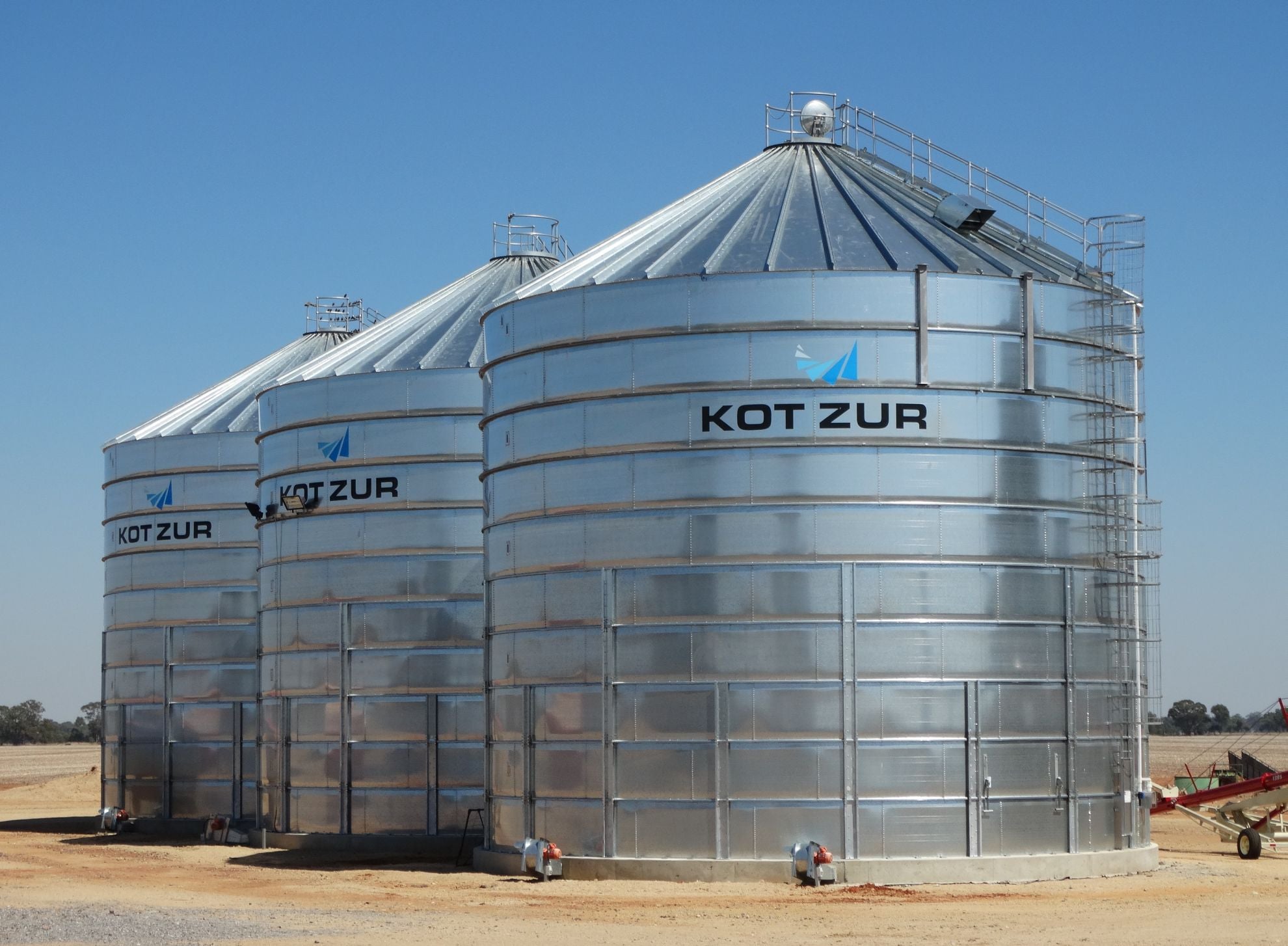

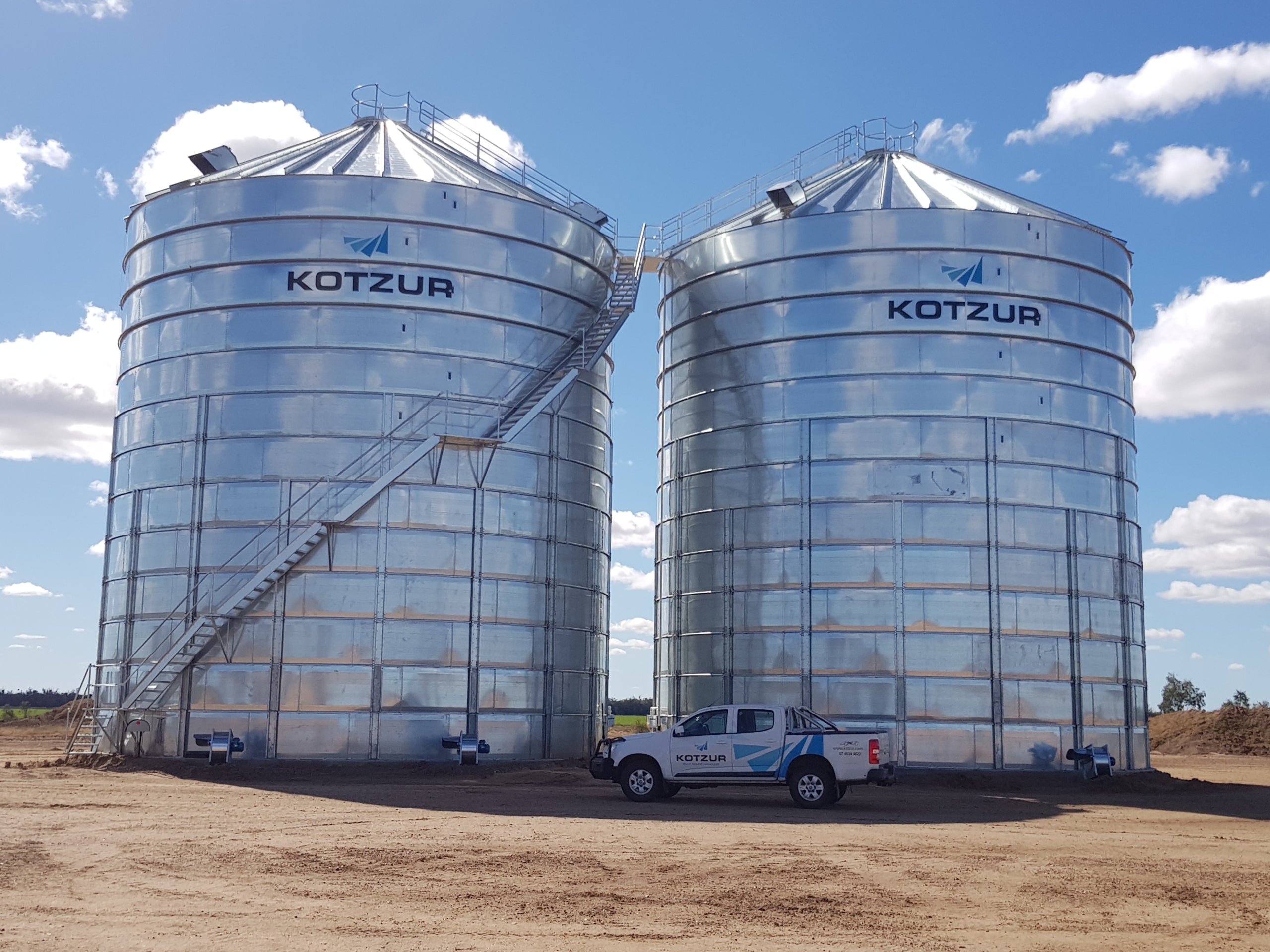

GP 18 SeriesCapacity M3Capacity Wheat T(1)Max Load T(2)Height to Centre M(3)Height to Eave M(3)Nom. Diameter MAuger Length(4) M (ft)
GP 18-5 10198469389.7613.718.0 (60)
GP 18-6 1181980108710.87.113.719.9 (66)
GP 18-7 13431115123611.98.213.721.8 (72)
GP 18-8 150512491385139.313.723.7 (78)
GP 18-9 16671384153414.110.413.725.6 (84)
GP 18-10 18291518168315.211.513.727.5 (90)
GP 18-11 19911652183216.312.613.729.5 (97)
GP 18-12 21531787198117.413.713.731.4 (103)
GP 18-13 23151921213018.514.813.733.3 (109)
GP 20 SeriesCapacity M3Capacity Wheat T(1)Max Load T(2)Height to Centre M(3)Height to Eave M(3)Nom. Diameter MAuger Length(4) M (ft)
GP 20-10 2258187420771611.515.228.8 (94)
GP 20-11 24572040226117.112.615.230.78 (101)
GP 20-12 26572205244418.213.715.232.76 (107)
GP 20-13 28562370262819.314.815.2N/A
GP 20-14 30552536281120.415.915.2N/A
GP 20-15 32552701299421.51715.2N/A
GP 20-16 34542867317822.618.115.2N/A
GP 20-17 36533032336123.719.215.2N/A
GP 20-18 38533198354524.820.315.2N/A
GP 20-19 40523363372825.921.415.2N/A
GP 20-20 4251352939112722.515.2N/A
GP 22 SeriesCapacity M3Capacity Wheat T(1)Max Load T(2)Height to Centre M(3)Height to Eave M(3)Nom. Diameter MAuger Length(4) M (ft)
GP 22-10 27772304255516.411.516.729.5 (97)
GP 22-11 30202506277812.612.616.731.4 (103)
GP 22-12 32622707300018.613.716.733.3 (109)
GP 22-13 35042908322419.714.816.7N/A
GP 22-14 37463110344720.815.916.7N/A
GP 22-15 39893311367021.91715.216.7
GP 22-16 4231351238922318.116.7N/A
GP 22-17 44733713411524.119.216.7N/A
GP 22-18 47163913433825.220.316.7N/A
GP 22-19 49594116456226.321.416.7N/A
GP 22-20 52024317478627.422.516.7N/A
GP 24 SeriesCapacity M3Capacity Wheat T(1)Max Load T(2)Height to Centre M(3)Height to Eave M(3)Nom. Diameter MAuger Length(4) M (ft)
GP 24-12 38993236358718.713.218.2N/A
GP 24-13 41863474385119.814.318.2N/A
GP 24-14 44733712411520.915.418.2N/A
GP 24-15 4759395043792216.518.2N/A
GP 24-16 50464188464323.117.618.2N/A
GP 24-17 53334426490624.218.718.2N/A
GP 24-18 56204664517025.319.818.2N/A
GP 24-19 59074902543426.420.918.2N/A
GP 24-20 61935141569827.52218.2N/A
GP 24-21 64805379596223.121.418.2N/A
GP 24-22 67675617622629.724.218.2N/A
GP 24-23 70545855648930.825.318.218.2
GP 24-24 73416093675331.926.418.2N/A
GP 24-25 7627633170173327.518.2N/Acolumn content-19
GP 24-26 79146569728134.128.618.2N/A
GP 26 SeriesCapacity M3Capacity Wheat T(1)Max Load T(2)Height to Centre M(3)Height to Eave M(3)Nom. Diameter MAuger Length(4) M (ft)
GP 26-16 59714956549323.817.619.7N/A
GP 26-17 63085236580324.918.719.7N/A
GP 26-18 6645551561132619.819.7N/A
GP 26-19 69825795642327.120.919.7N/A
GP 26-20 73186074673328.22219.7N/A
GP 26-21 76556354704329.323.119.7N/A
GP 26-22 79926633735330.424.219.7N/A
GP 26-23 83296913766331.525.319.7N/A
GP 26-24 86667193797332.626.419.7N/A
GP 26-25 90037472828233.727.519.7N/A
GP 26-26 93397752859234.828.619.7N/A
GP 30 SeriesCapacity M3Capacity Wheat T(1)Max Load T(2)Height to Centre M(3)Height to Eave M(3)Nom. Diameter MAuger Length(4) M (ft)
GP 30-12 6297522757932013.222.8N/A
GP 30-13 67475600620721.114.322.8N/A
GP 30-14 71975973662122.215.422.8N/A
GP 30-15 76476347703523.316.522.8N/A
GP 30-16 80966720744924.417.622.8N/A
GP 30-17 85467093786325.518.722.8N/A
GP 30-18 89967467827626.619.822.8N/A
GP 30-19 94467840869027.720.922.8N/A
GP 30-20 98968214910428.82222.8N/A
GP 30-21 103468587951829.923.122.8N/A
GP 30-22 10796896099323124.222.8N/A
GP 30-23 1124593341034532.125.322.8N/A
GP 30-24 1169597071076033.226.422.8N/A
GP 30-25 12145100801116934.327.522.8N/A
GP 30-26 12595104541158735.428.622.8N/A
GP 32 SeriesCapacity M3Capacity Wheat T(1)Max Load T(2)Height to Centre M(3)Height to Eave M(3)Nom. Diameter MAuger Length(4) M (ft)
GP 32-18 102698523944727.119.824.3N/A
GP 32-19 107798947991728.220.924.3N/A
GP 32-20 1128993701038629.32224.3N/A
GP 32-21 1180097941085630.423.124.3N/A
GP 32-22 12310102171132531.524.224.3N/A
GP 32-23 12820106411179532.625.324.3N/A
GP 32-24 13330110641226433.726.424.3N/A
GP 32-25 13841114881273334.827.524.3N/A
GP 32-26 14351119111320335.928.624.3N/A
GP 32-27 1486112335136723729.724.3N/A
GP 32-28 15371127581414238.130.824.3N/A
GP 32-29 15882131821461139.231.924.3N/A
GP 32-30 16392136051508040.33324.3N/A
GP 36 SeriesCapacity M3Capacity Wheat T(1)Max Load T(2)Height to Centre M(3)Height to Eave M(3)Nom. Diameter MAuger Length(4) M (ft)
GP 36-18 1316810929121152819.827.4N/A
GP 36-19 13814114661270929.120.927.4N/A
GP 36-20 14460120021330330.22227.4N/A
GP 36-21 15106125381389731.323.127.4N/A
GP 36-22 15752130741449132.424.227.4N/A
GP 36-23 16398136101508633.525.327.4N/A
GP 36-24 17043141461568034.626.427.4N/A
GP 36-25 17689146821627435.727.527.4N/A
GP 36-26 18335152181686836.828.627.4N/A
GP 36-27 18987157591746837.929.727.4N/A
GP 36-28 1962716290180573930.827.4N/A
GP 36-29 20273168271865140.131.927.4N/A
GP 36-30 20919173631924541.23327.4N/A
  1. Wheat capacity based on typical consolidated/compacted bulk density in silo.
  2. Max. Load based on engineering design for wheat at 920kg/m3 – this load will vary for products with differing properties.
  3. Overall height allows for 400mm concrete height – this will vary with unloader options.
  4. Auger lengths are indicative only and are based on 35° angle. As differing auger brands elevate to different angles, always check individual auger height.

Ordering Process

1. Orders

1. Orders

Kotzur's experienced sales team will help you find the best Storage Solution and delivery date to suit your needs.

2. Made to Order

2. Made to Order

All our silo parts are made to order at our factory based in Walla Walla (NSW). Other handling and processing parts are made at our factory based in Toowoomba (QLD).

Earthworks and Site Preparation

Earthworks and Site Preparation

Get ready for the installation of additional storage by completing any necessary earthworks.

Delivery and Installation

Delivery and Installation

Kotzur Silo delivery and building teams will be in touch with you to let you know when your order will be delivered and installed. The duration of the installation process varies depending of the complexity of the set up.
