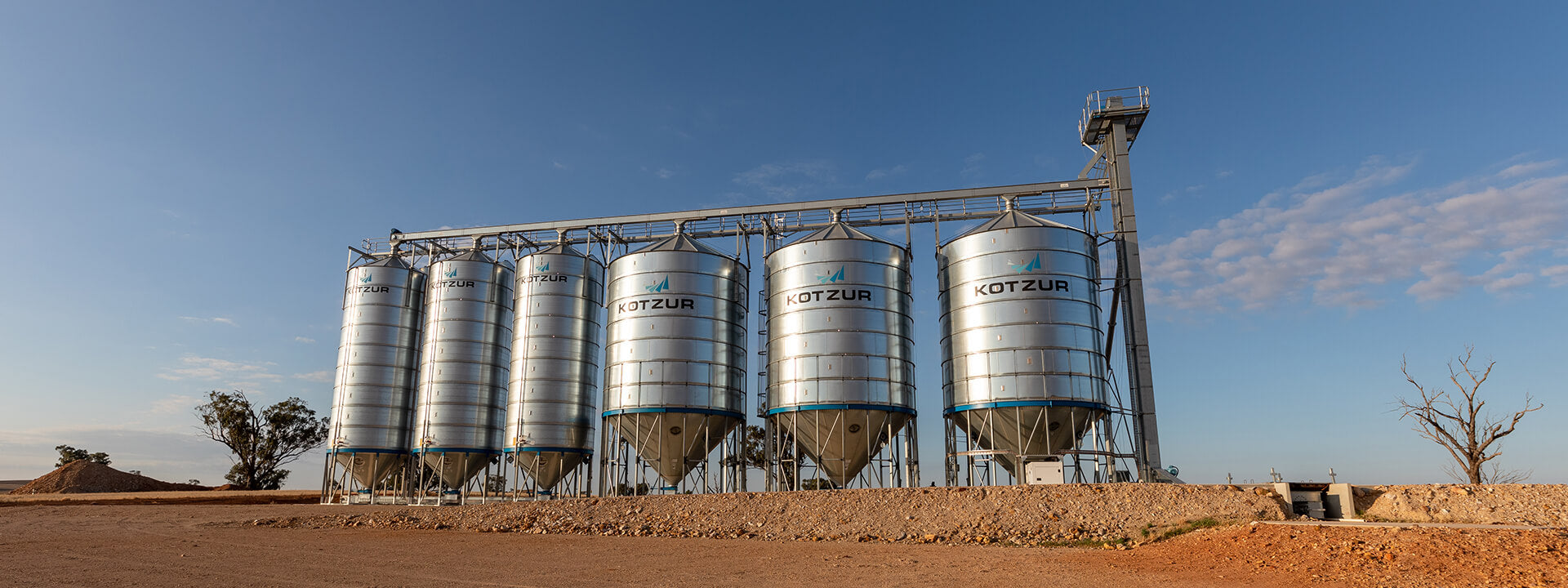

Large Elevated Silos
APPLICATIONS
Kotzur large elevated silos can be utilised for a variety of uses. Their guaranteed gas tight seal and ease of filling and emptying ensures they are a true general-purpose silo.
Suitable for long term storage they are also ideal for using as a hospital silo for unsealed storage fumigating grain for insect infestations before out turn.
Kotzur large elevated silos are also available with 45 degree cone angle for difficult-to-handle products.
All large elevated silos are constructed on site by experienced Kotzur construction crews to your specifications.
OPTIONS
- Factory manufactured components, assembled on site.
- Rapid emptying due to elevated hopper design.
- Engineered and certified to Australian Standards and Codes.
- Galvanised Roof, Walls, Hopper and support structure.
- Gas Sealed to 5 minute half pressure decay standard.

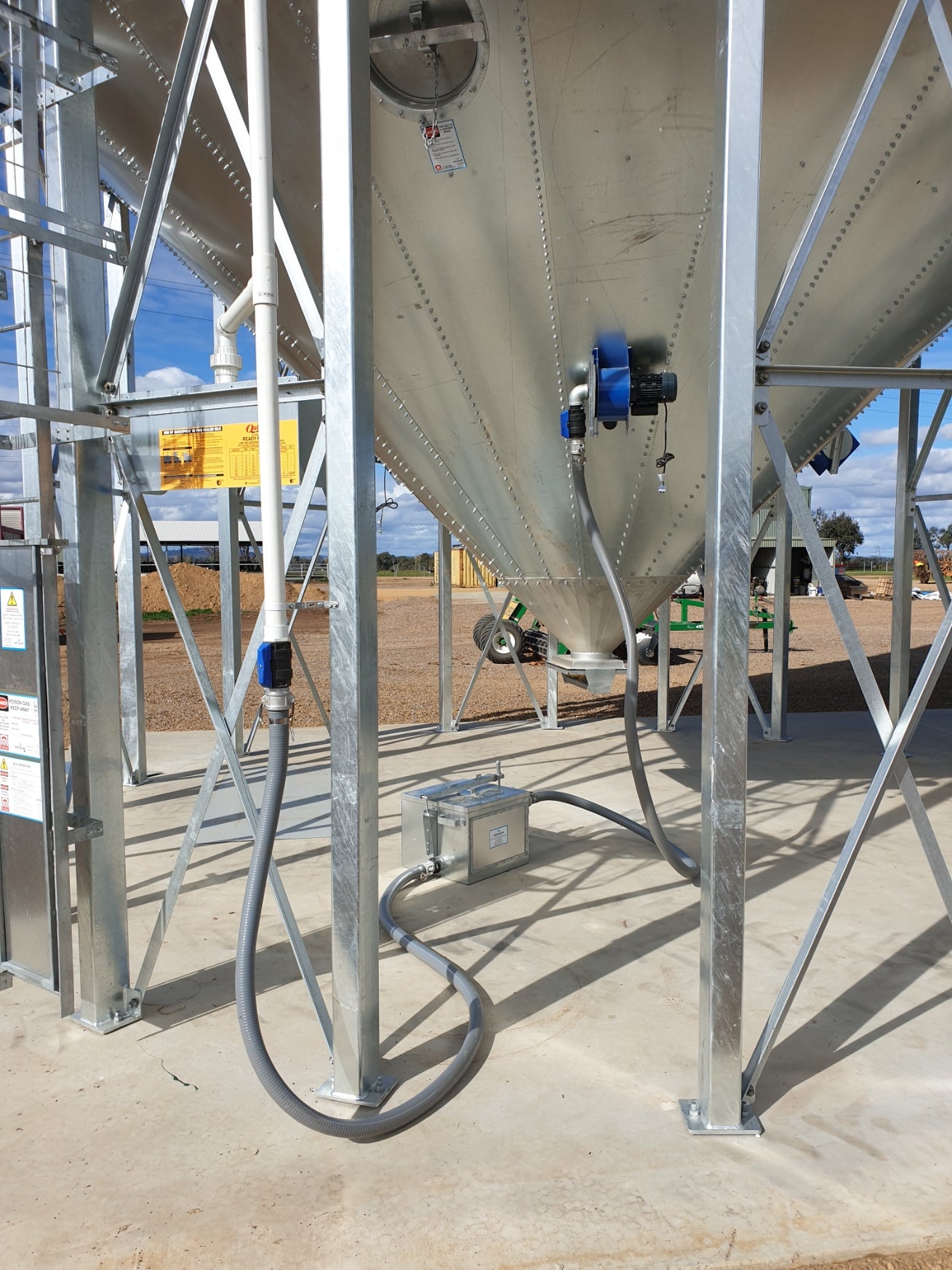

- Pest Eradication with out chemical residue and risk of insect resistance.

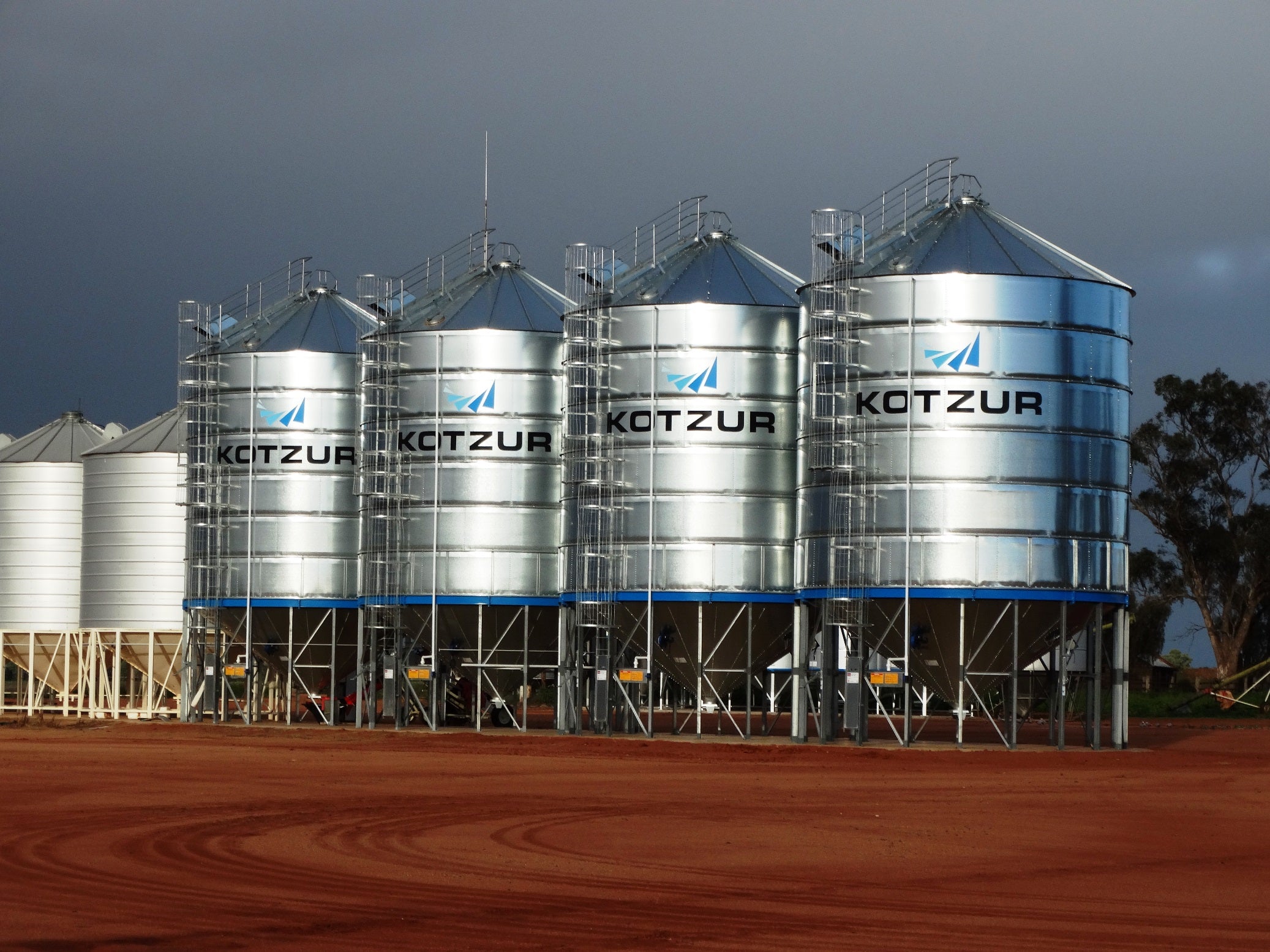

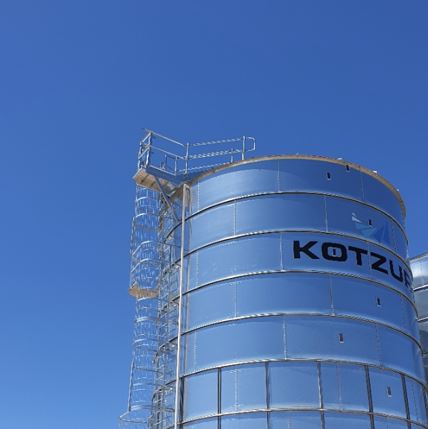

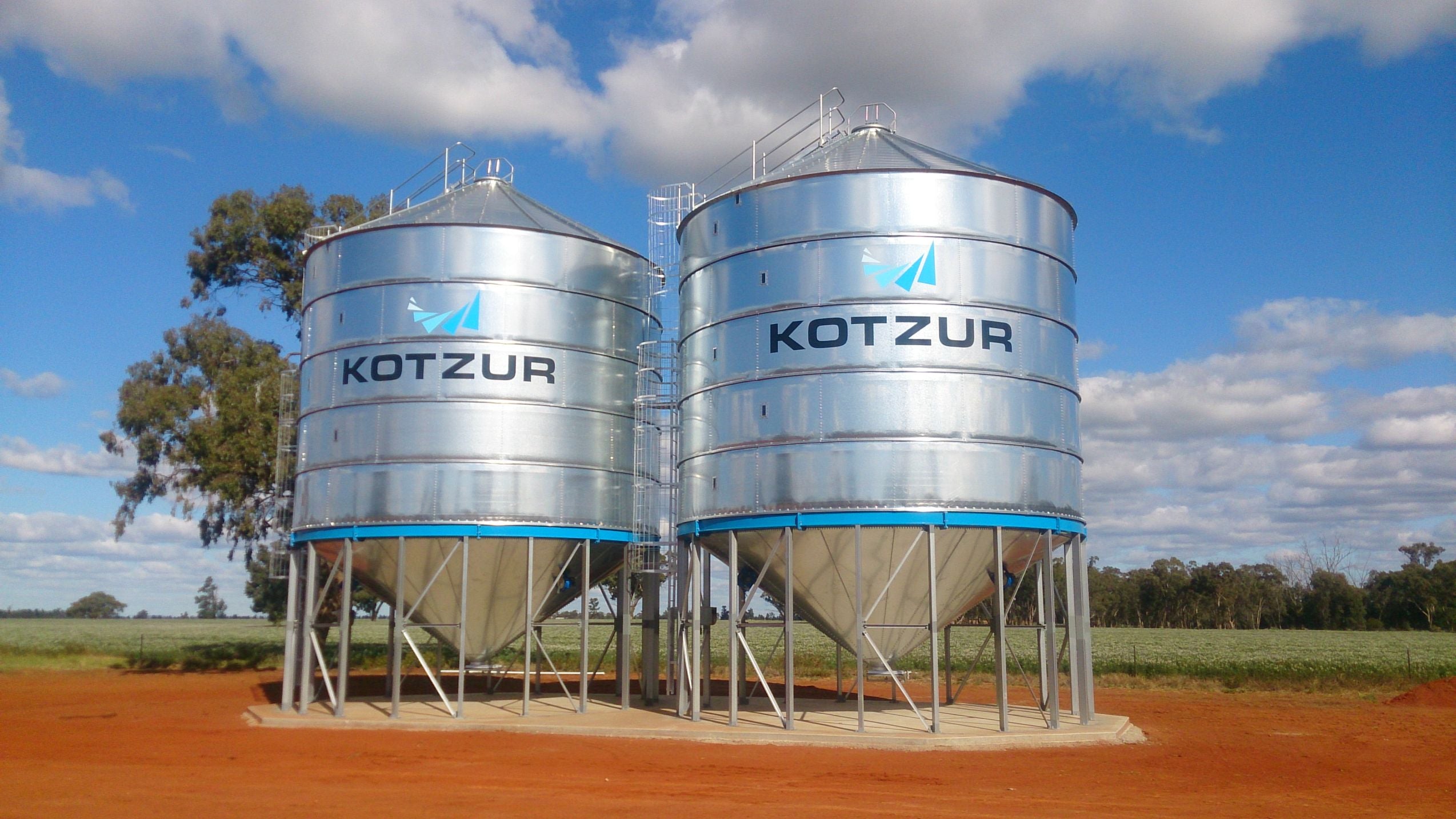

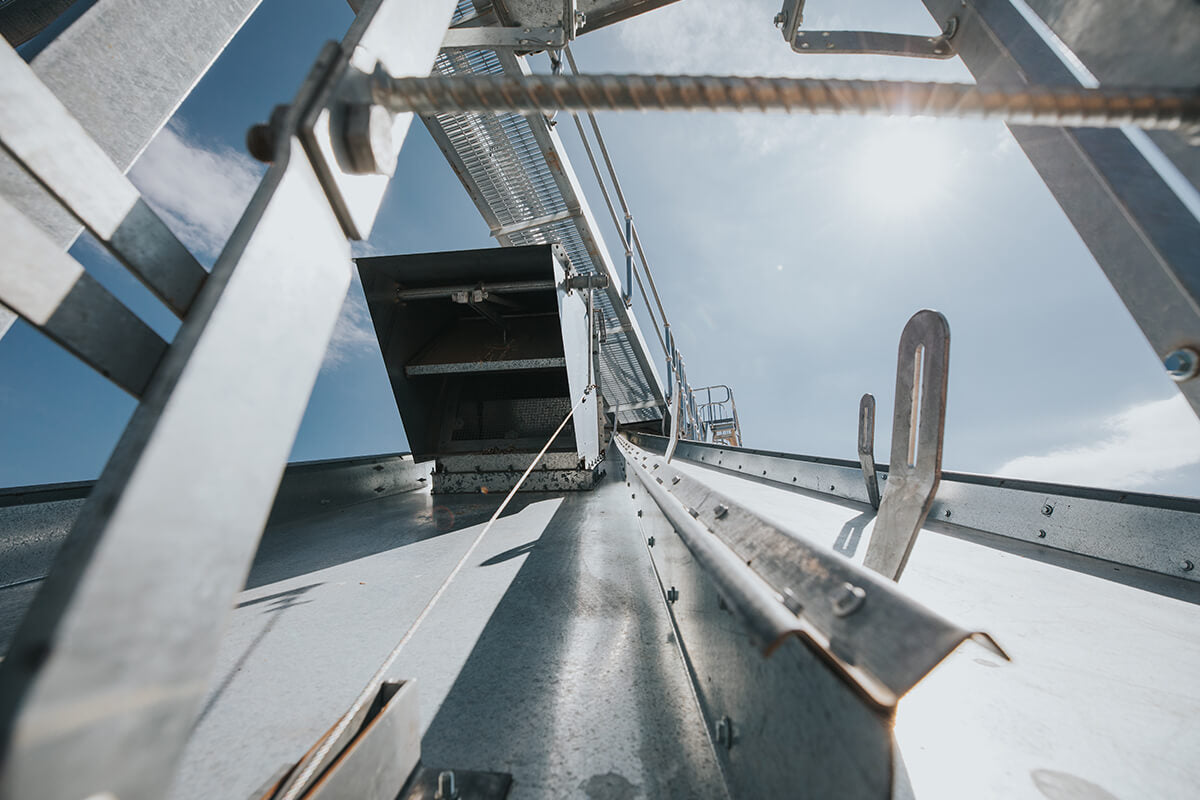

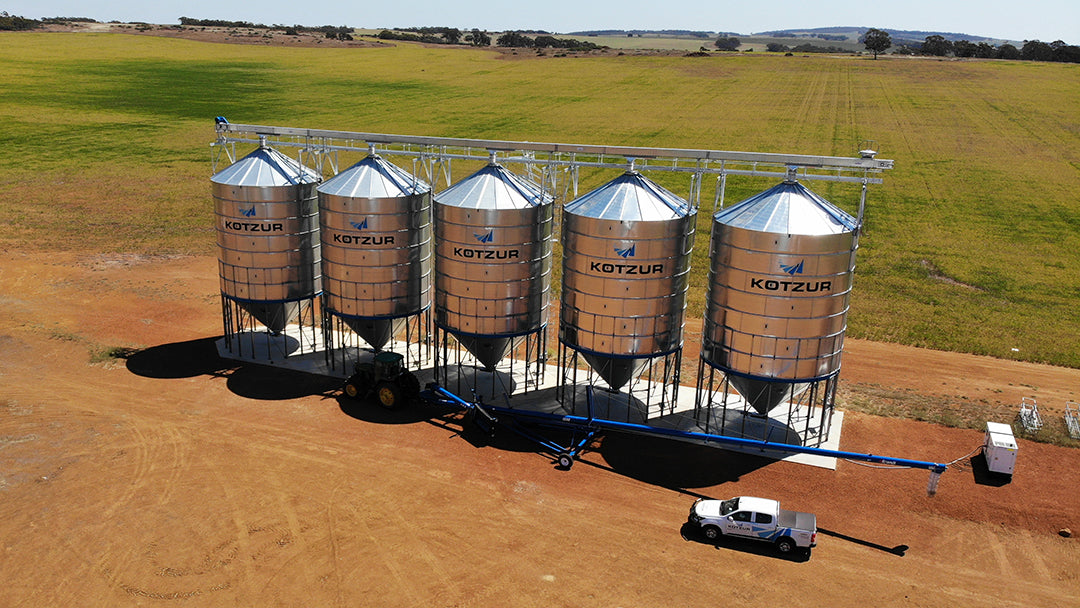

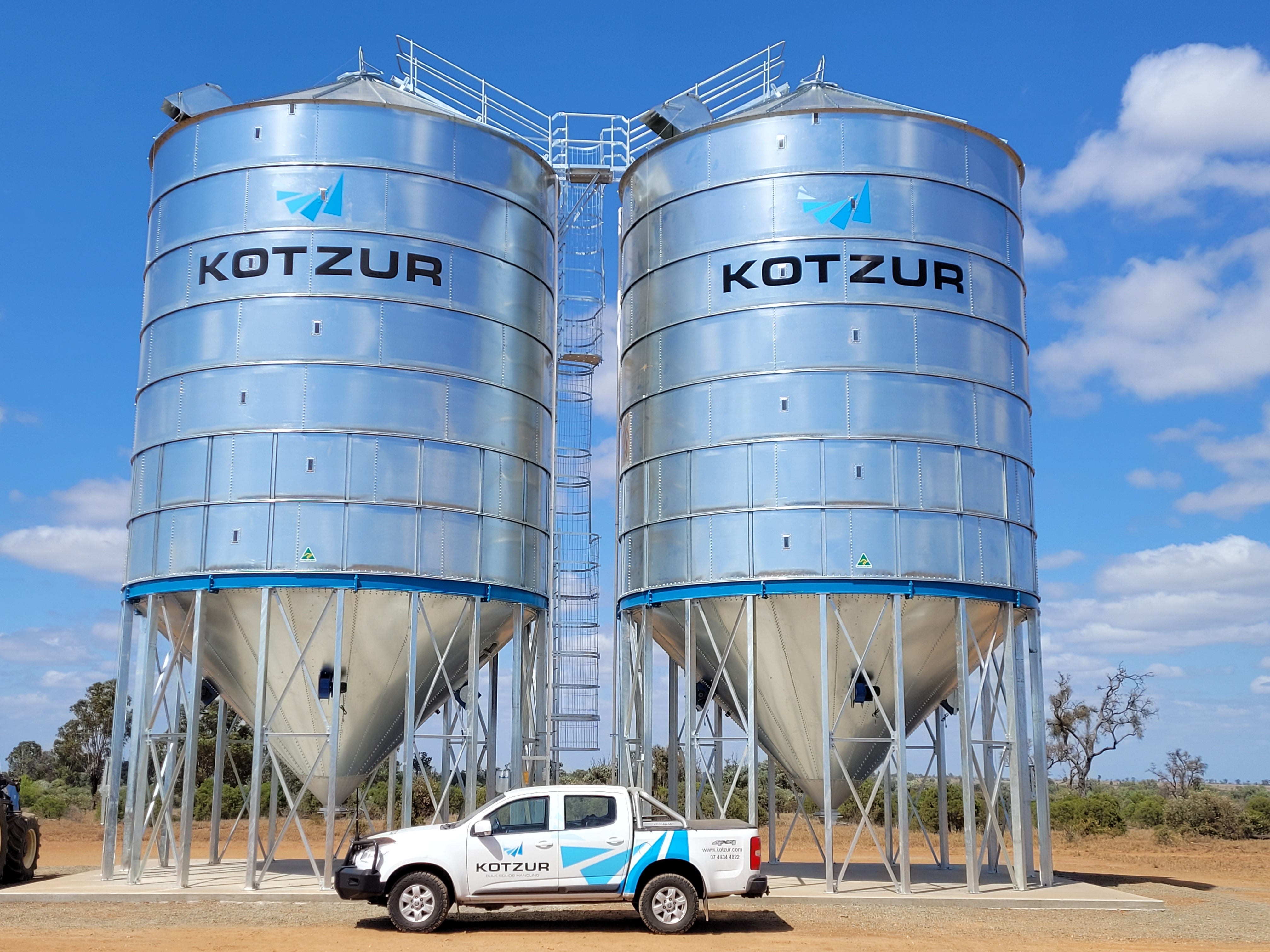

- External wall/roof ladder system for roof access.
- Convenient, quick acting seal system for all hatches and openings. Additional sealants (eg. silicone) are NOT required each time bin is sealed.
- Bin is protected with a high capacity oil relief valve.
- Clean design – no internal stiffeners.
- All structural seals use high quality, long lasting materials.
- Sight glass level indicators standard in each wall strake.
- We can customise all models suit specific customer requirements
- Covered by Kotzur 5 year warranty.

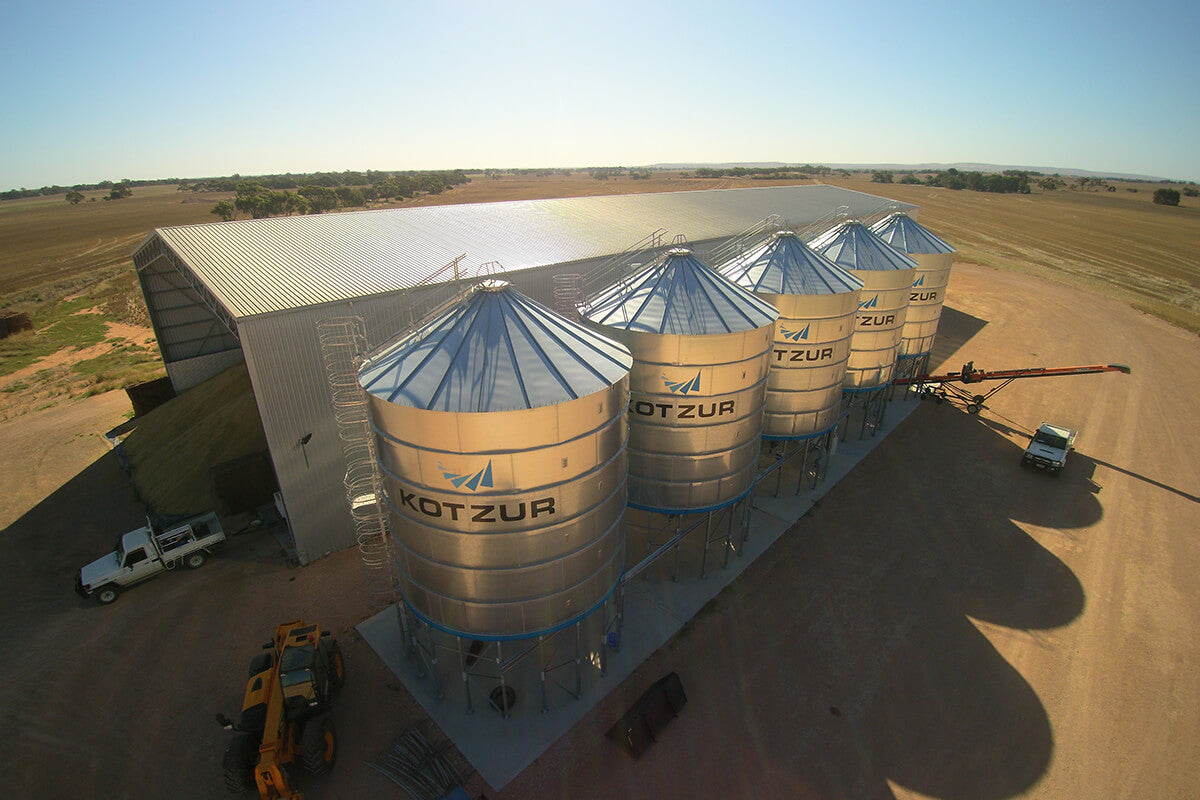

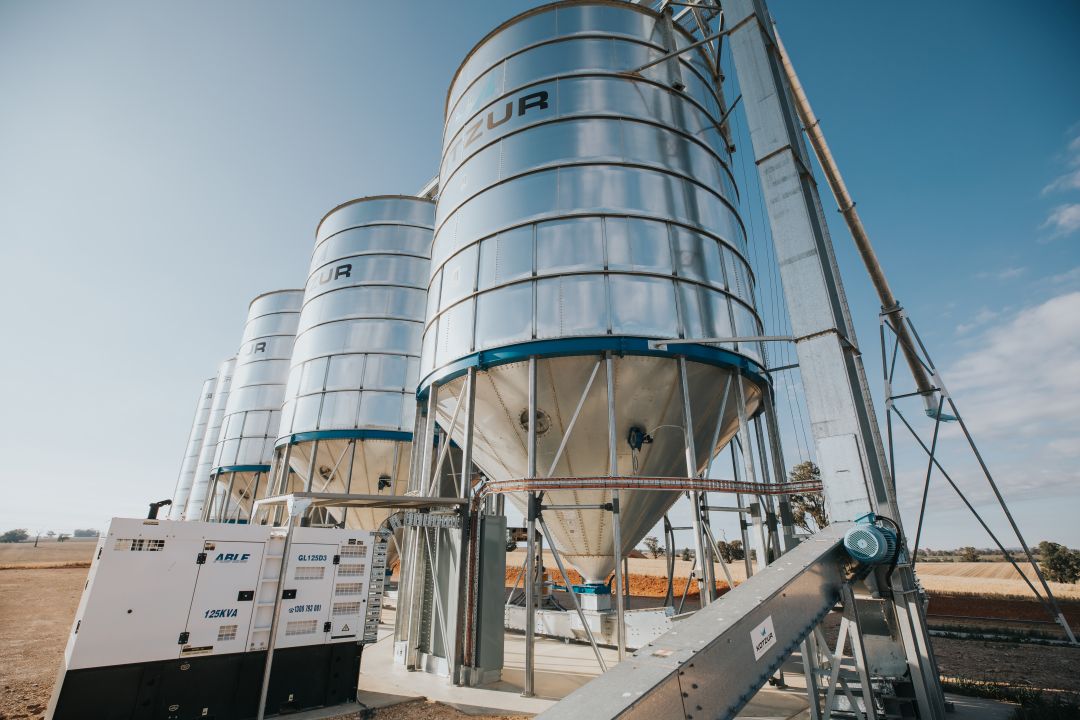

PRODUCT GALLERY
Specifications
| Model | Capacity M3 | Capacity Wheat T(1) | Max Load T(2) | Height to Centre M(3) | Height to Eave M(3) | Nom. Diameter M | Outlet Height mm (3)(6) | Cone Angle | Auger Length(4) M (ft) |
|---|---|---|---|---|---|---|---|---|---|
| GPE 8-3-35 | 121 | 98 | 111 | 7.8 | 6.1 | 5.8 | 700 | 35° | 13.6 (45) |
| GPE 8-4-35 | 150 | 122 | 138 | 8.9 | 7.2 | 5.8 | 700 | 35° | 15.5 (51) |
| GPE 8-5-35 | 179 | 146 | 165 | 10 | 8.3 | 5.8 | 700 | 35° | 17.4 (57) |
| GPE 8-3-45 | 129 | 105 | 119 | 8.6 | 6.9 | 5.8 | 700 | 45° | 15.2 (50) |
| GPE 8-4-45 | 159 | 129 | 146 | 9.7 | 8 | 5.8 | 700 | 45° | 17.1 (56) |
| GPE 8-5-45 | 188 | 153 | 173 | 10.8 | 9.1 | 5.8 | 700 | 45° | 19.0 (62) |
| GPE 10-3-35 | 207 | 172 | 190 | 8.7 | 6.7 | 7.3 | 700 | 35° | 15.2 (50) |
| GPE 10-4-35 | 253 | 210 | 233 | 9.8 | 7.8 | 7.3 | 700 | 35° | 17.1 (56) |
| GPE 10-5-35 | 299 | 248 | 275 | 10.9 | 8.9 | 7.3 | 700 | 35° | 19.0 (62) |
| GPE 10-6-35 | 345 | 286 | 317 | 12 | 10 | 7.3 | 700 | 35° | 20.6 (68) |
| GPE 10-4-45 | 267 | 221 | 246 | 10.7 | 8.6 | 7.3 | 600 | 45° | 18.7 (61) |
| GPE 10-5-45 | 313 | 260 | 288 | 11.8 | 9.7 | 7.3 | 600 | 45° | 20.6 (68) |
| GPE 10-6-45 | 359 | 298 | 330 | 12.9 | 10.8 | 7.3 | 600 | 45° | 22.5 (74) |
| GPE 10-7-45 | 404 | 335 | 372 | 14 | 11.9 | 7.3 | 600 | 45° | 24.4 (80) |
| GPE 10-8-45 | 450 | 373 | 415 | 15.2 | 13.1 | 7.3 | 600 | 45° | 26.4 (87) |
| GPE 10-9-45 | 496 | 412 | 456 | 16.3 | 14.2 | 7.3 | 600 | 45° | 28.4 (93) |
| GPE 10-10-45 | 542 | 450 | 498 | 17.4 | 15.3 | 7.3 | 600 | 45° | 30.3(100) |
| GPE 12-5-45 | 472 | 392 | 434 | 13 | 10.6 | 8.7 | 700 | 45° | 22.7 (74) |
| GPE 12-6-45 | 538 | 447 | 495 | 14.1 | 11.7 | 8.7 | 700 | 45° | 24.6 (81) |
| GPE 12-7-45 | 604 | 501 | 556 | 15.2 | 12.8 | 8.7 | 700 | 45° | 26.3 (86) |
| GPE 12-8-45 | 670 | 556 | 616 | 16.3 | 13.9 | 8.7 | 700 | 45° | 28.0 (92) |
| GPE 12-9-45 | 736 | 611 | 677 | 17.4 | 15 | 8.7 | 700 | 45° | 29.8 (98) |
| GPE 12-10-45 | 802 | 666 | 738 | 18.5 | 16.1 | 8.7 | 700 | 45° | 31.6(104) |
| GPE 15-7-40 | 1085 | 901 | 998 | 17.1 | 13.8 | 11.4 | 1200 | TBC | 31.6(104) |
| GPE 15-8-40 | 1198 | 994 | 1102 | 18.2 | 14.9 | 11.4 | 1200 | 40° | TBC |
| GPE 15-9-40 | 1311 | 1088 | 1206 | 19.3 | 16 | 11.4 | 1200 | 40° | TBC |
| GPE 15-10-40 | 1423 | 1181 | 1309 | 20.4 | 17.1 | 11.4 | 1200 | 40° | TBC |
| GPE 15-11-40 | 1536 | 1275 | 1413 | 21.5 | 18.2 | 11.4 | 1200 | 40° | TBC |
| GPE 15-12-40 | 1649 | 1369 | 1517 | 22.6 | 19.3 | 11.4 | 1200 | 40° | TBC |
| GPE 15-13-40 | 1761 | 1462 | 1620 | 23.7 | 20.4 | 11.4 | 1200 | 40° | TBC |
| GPE 15-14-40 | 1874 | 1555 | 1724 | 24.8 | 21.5 | 11.4 | 1200 | 40° | TBC |
- Wheat capacity based on typical consolidated/compacted bulk density in silo.
- Max. Load based on engineering design for wheat at 920kg/m3 – this load will vary for products with differing properties.
- Alternative (non Standard) Outlet heights are optional on all models.
- Auger lengths are indicative only and are based on 35° angle. As differing auger brands elevate to different angles, always check individual auger height.
- Please Note – Larger commercial models are available to 2,400 tonne capacity.
- Nominal outlet height
