K-Rail
APPLICATIONS
Kotzur K Rail is a versatile fencing product that provides stock handling solutions to a variety of applications.
Available in two widths of 165mm and 225mm and 5 thicknesses K Rail is suitable for stock yards, holding pens, stock crates, header bats and rural and domestic fences.
Made from high tensile steel, Kotzur K-Rail is strong but light-weight, durable and easy to handle and transport. It is heavily galvanised for long life in harsh environments such as stock yards. Kotzur K- Rail is also very cost effective when compared with similar pipe, mesh or timber yards and is maintenance free – saving you money for years to come.
Kotzur K-Rail is quick and easy to erect using self-drilling screws and a power screwdriver thanks to the wide fixing pan on each side of the profile. Two people can fix the rail for an average set of stock yards or up to a kilometre of 3 rail fence in one day.

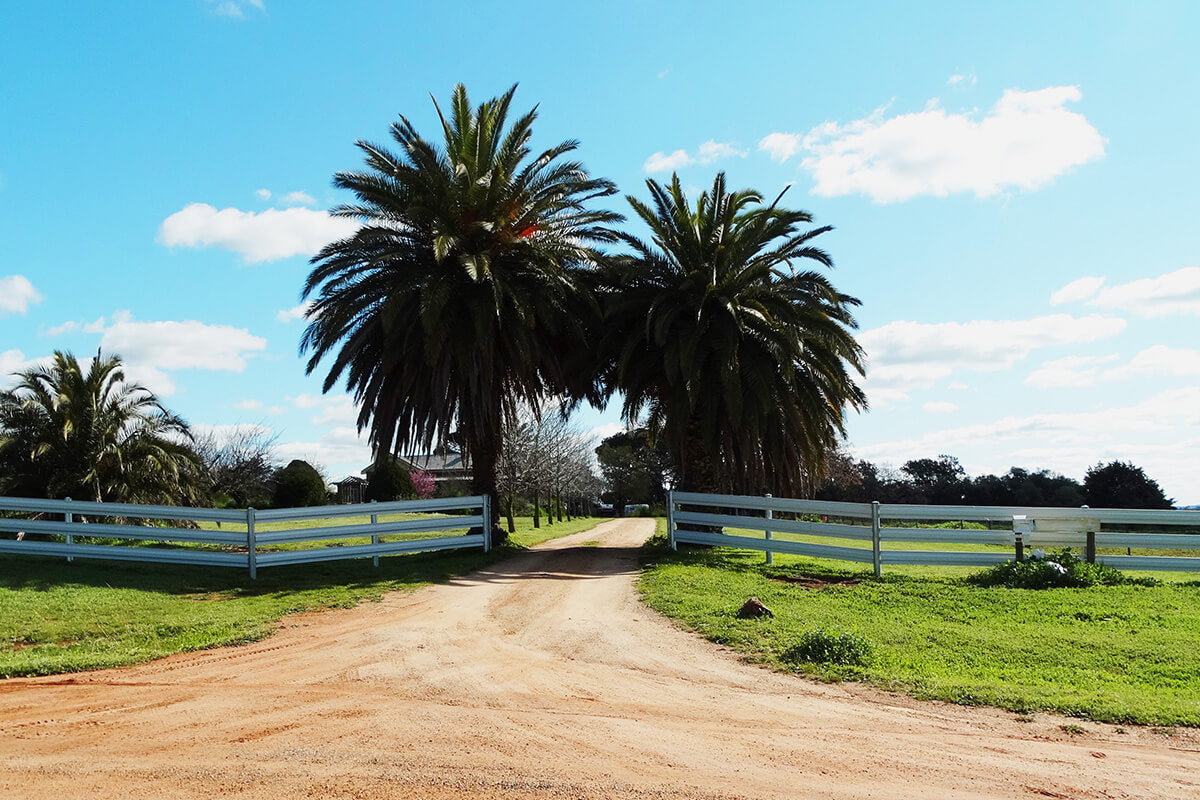

For decorative fences Kotzur K-Rail fencing gives the appearance of older style fences but at much less cost and without the need for any maintenance or painting. It is available with a pre-painted finish in a number of colours to suit your needs.
Available in a range of Colorbond colours as well as the popular galvanised option.
K-Rail Product Brochure
BENEFITS
- Available in 5 thicknesses and 2 widths
- Standard Z450 Galvanised coating, Colorbond painted finish optional (minimum order quantity of 29t applies)
- Suitable for stock yards, rural-domestic fencing, entrances
- Made from High Tensile steel – light weight but very strong
- Rolled edges and wide rail means people and stock friendly
- Highly visible for good stock movement
- Fast and easy to install
- Available in standard 6m lengths or special lengths to your requirements
- Proven over 15 years in all environments
SPECIFICATIONS
| Standard K-Rail 165mm wide (nom) | Mass kg/m | Metres per Tonne |
|---|---|---|
| 0.6 Galvanised | 1.16 | 862 |
| 0.8 Galvanised | 1.48 | 673 |
| 1.0 Galvanised | 1.80 | 556 |
| 1.2 Galvanised | 2.10 | 476 |
| 1.6 Galvanised | 2.80 | 355 |
| K-Rail Plus 225mm wide (nom) | Mass kg/m | Metres per Tonne |
|---|---|---|
| 0.6 Galvanised | 1.47 | 680 |
| 0.8 Galvanised | 1.88 | 525 |
| 1.0 Galvanised | 2.29 | 434 |
| 1.2 Galvanised | 2.67 | 371 |
*Note 0.6 K-Rail & K-Rail Plus available in Off-White. Other colours may be available on request.
